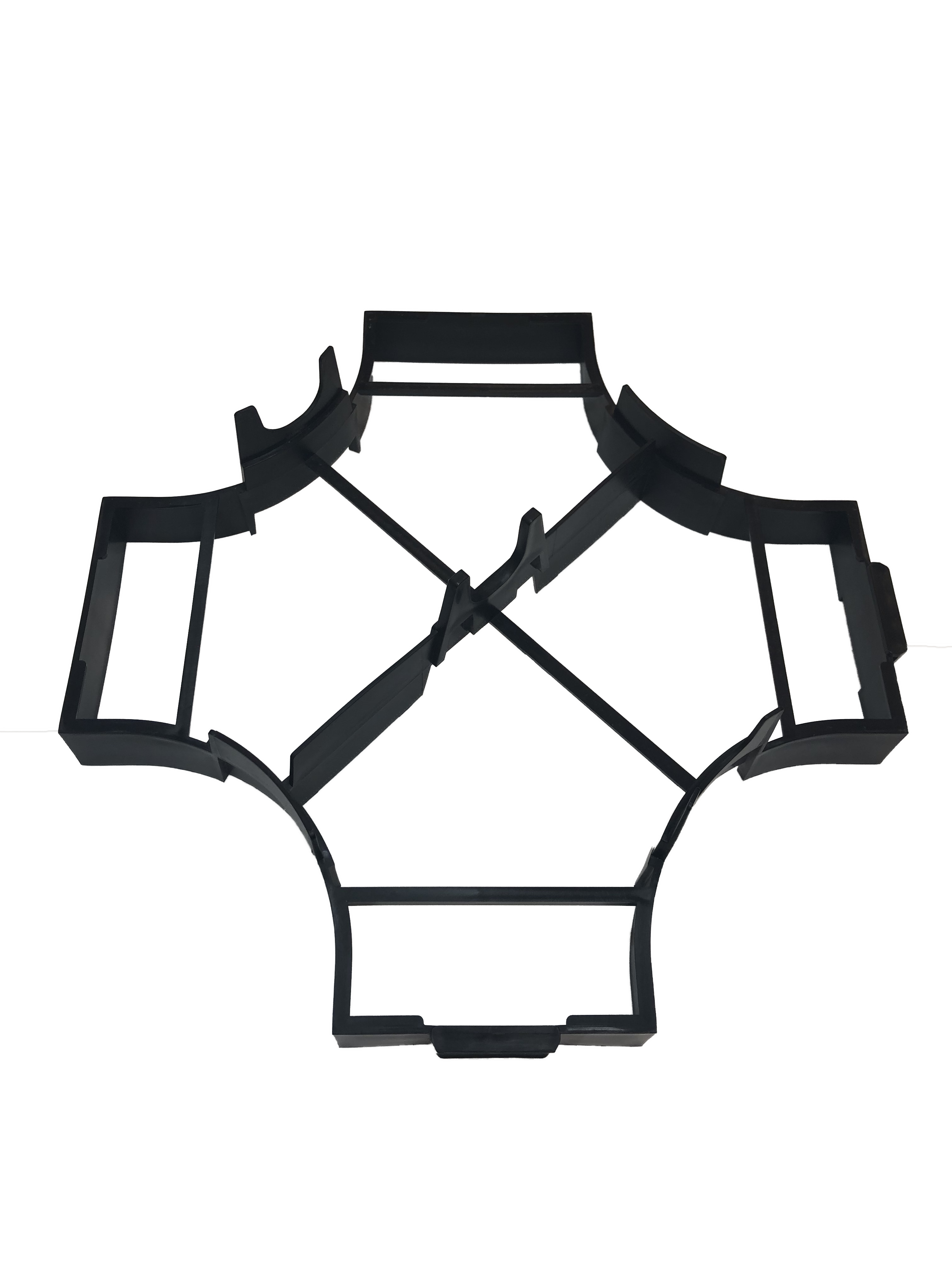

The CLEVA POD® SPACER™ is designed to form 110mm wide internal ribs. A unique element of the CLEVA POD® system is that the SPACER™ is designed to sit on top of the CLEVA POD® base flange. Once the reinforcing bar is located into the spacer, the weight of the reinforcing bar prevents the CLEVA POD® from lifting when the concrete is being poured. Lifting is a constant issue with polystyrene pods as the concrete slurry that finds its way under the pod causes the polystyrene pods to float.
Siting the CLEVA POD® SPACER™ on top of the CLEVA POD® base flange also prevents the SPACER™ from cutting into and penetrating the DPM.
The foundation’s internal ribs can be increased in size in multiples of 110mm by adding the clip-on SPACER™ extender.
Size: 300mm x 300mm
Find out more Clevaco POD System
